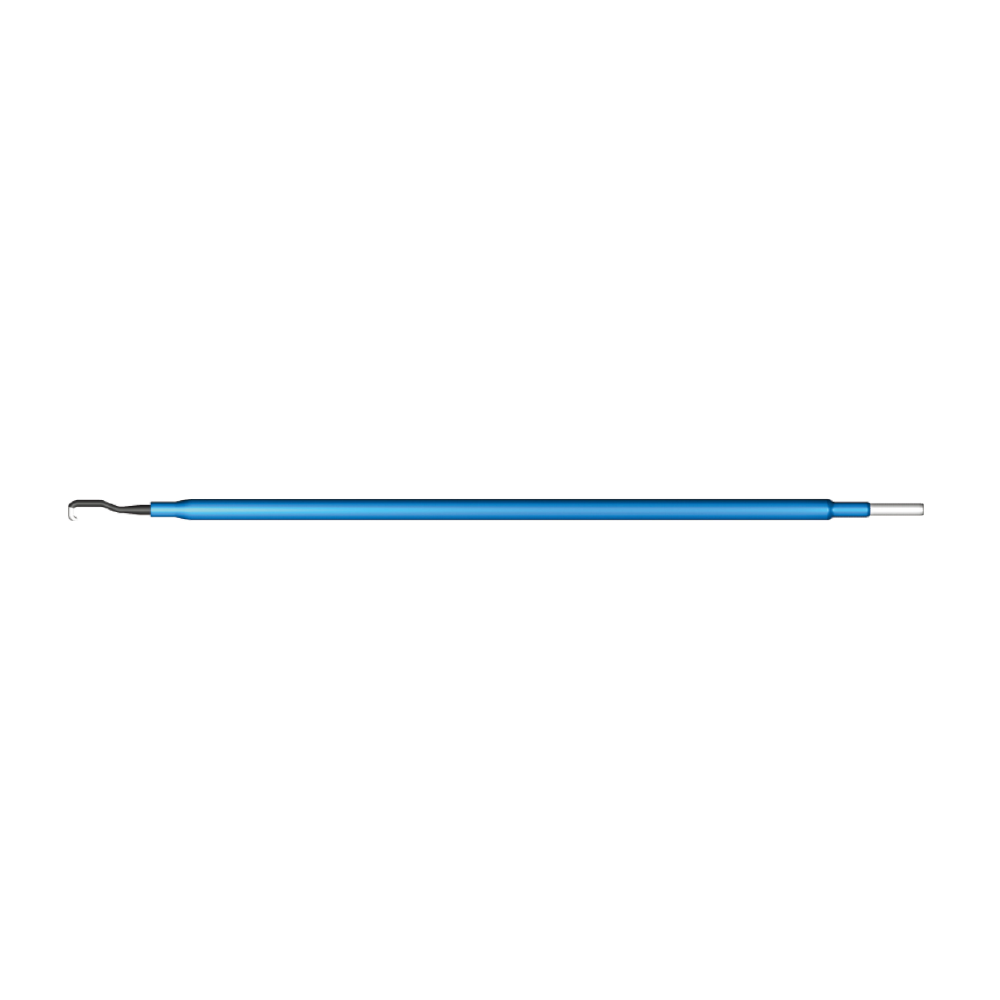

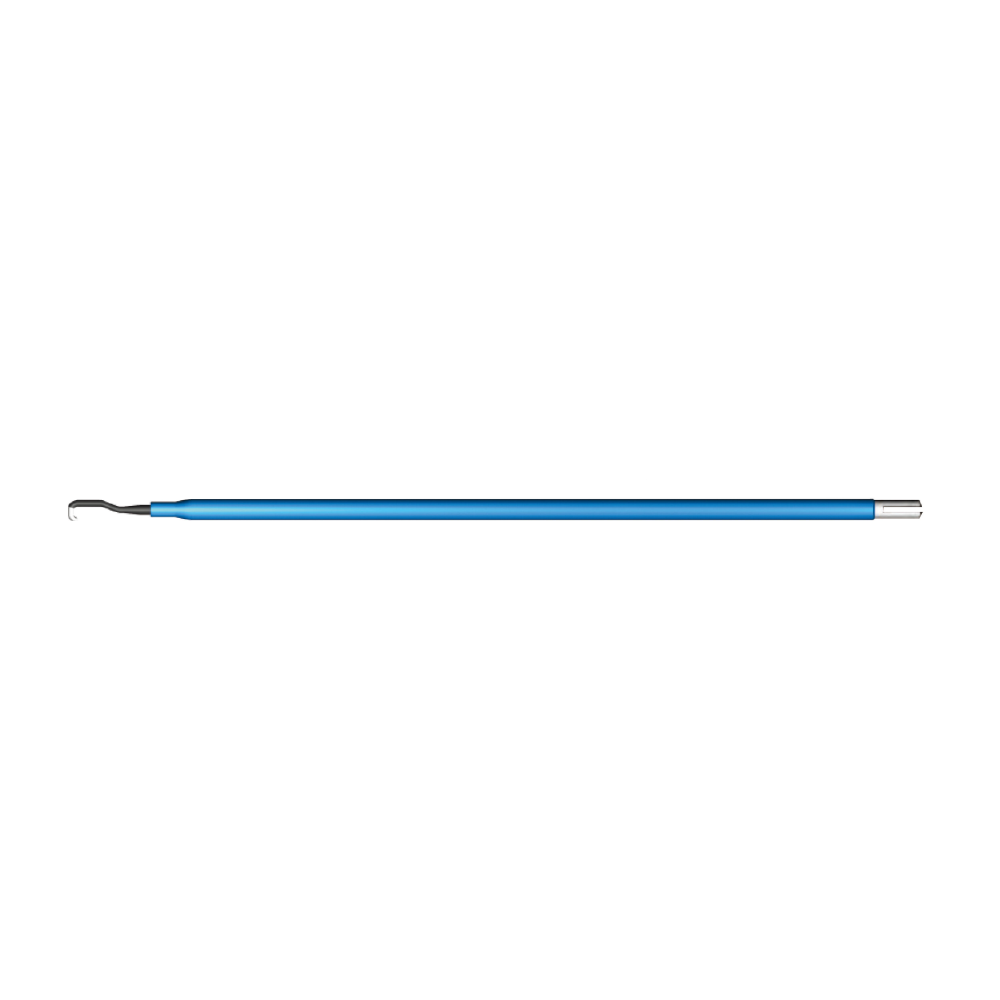

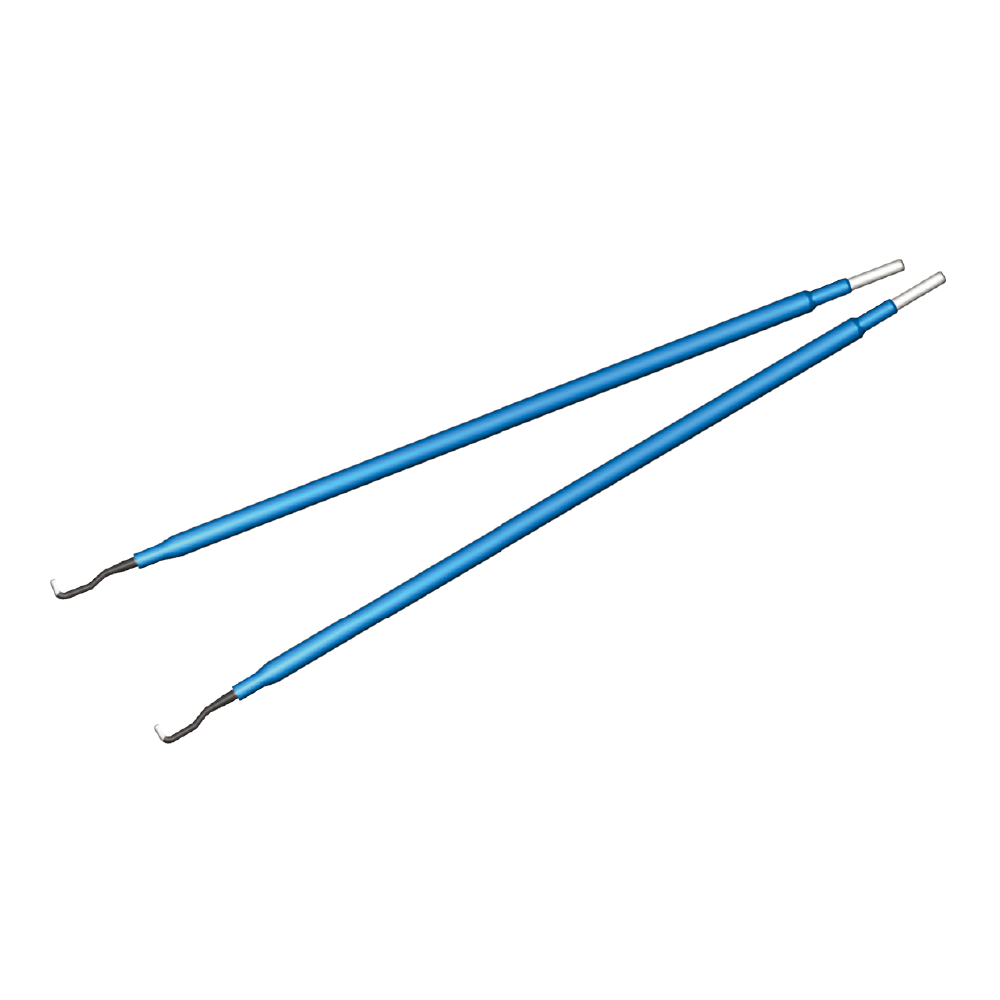

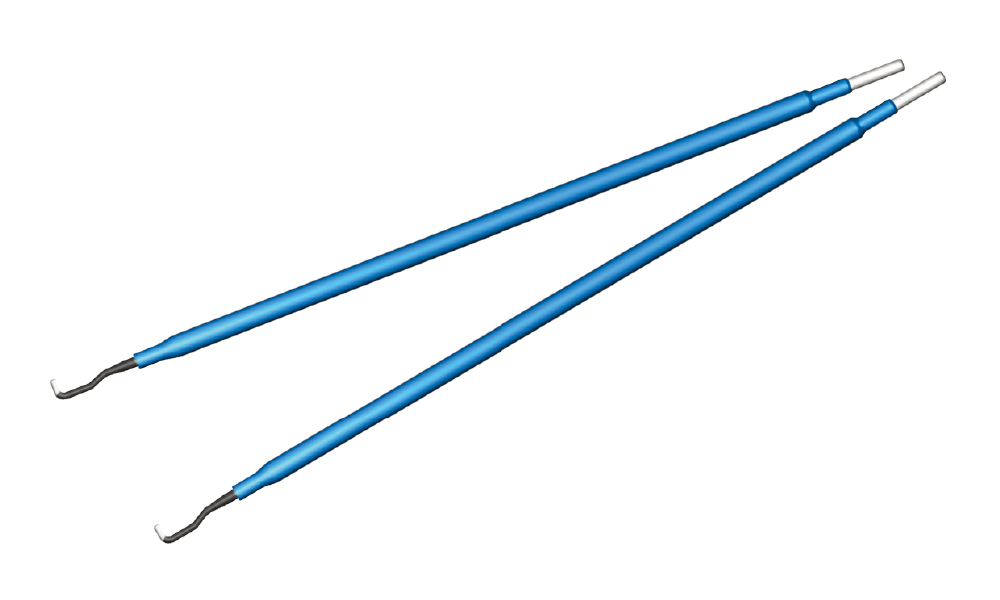

Disposable Laparoscopic Electrode -J Wire Electrode
Product Overiew
The J-Wire Electrode features a specialized 160° curved tip with 3.5mm radius, engineered for controlled-depth ablation and circumferential coagulation in anatomically complex laparoscopic fields.
Key Features
- 160° arc matches pelvic/liver dome contours without instrument torque
- Progressive energy gradient (tip-to-base) prevents deep tissue penetration

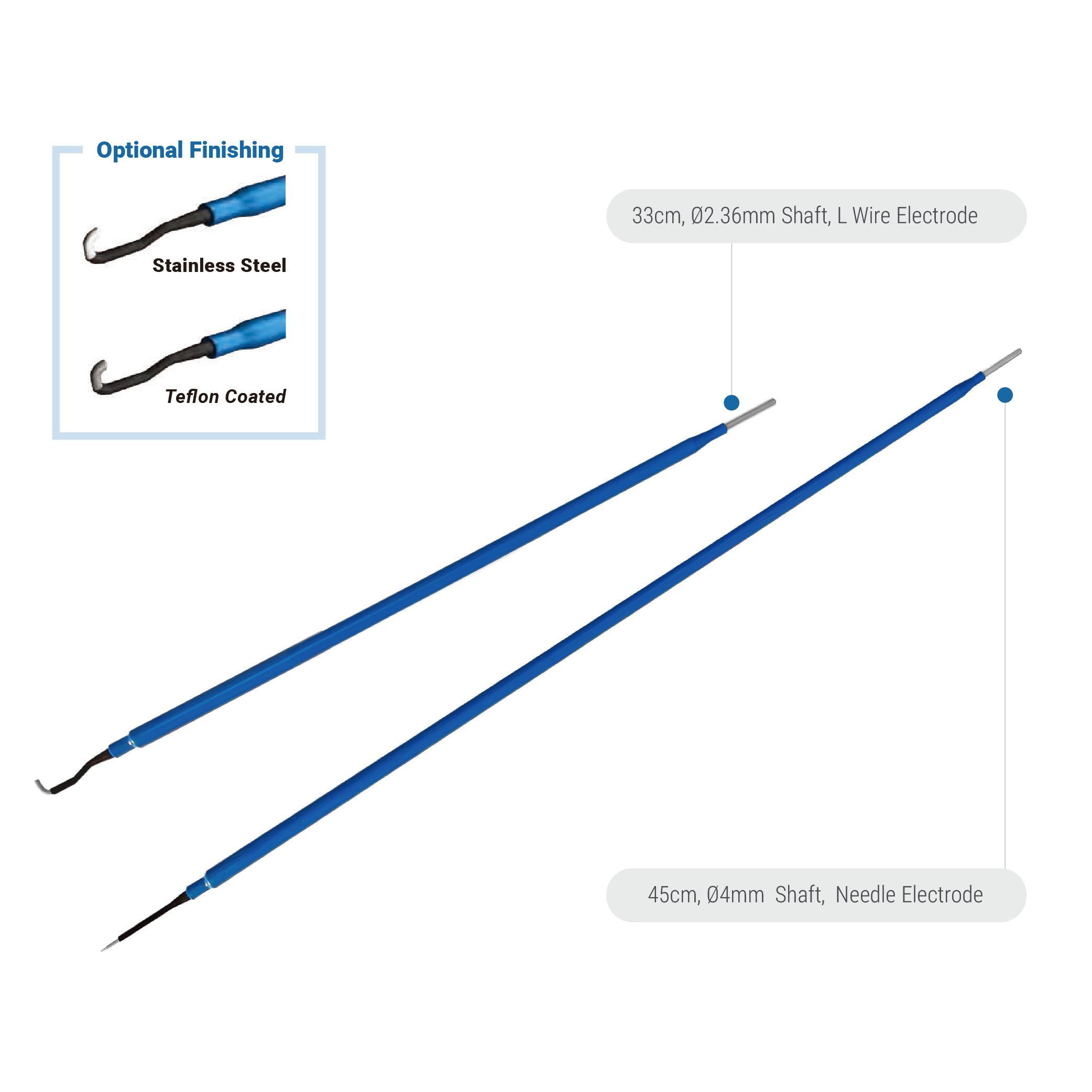

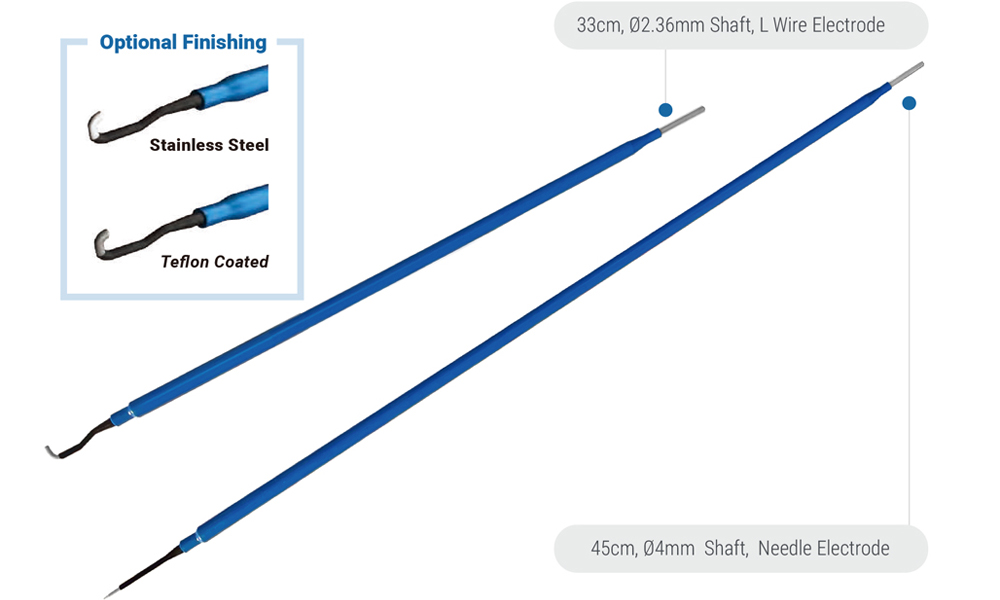

- Available in both shaft diameters (Ø2.36mm/ Ø4.00mm) and lengths (33cm/45cm)

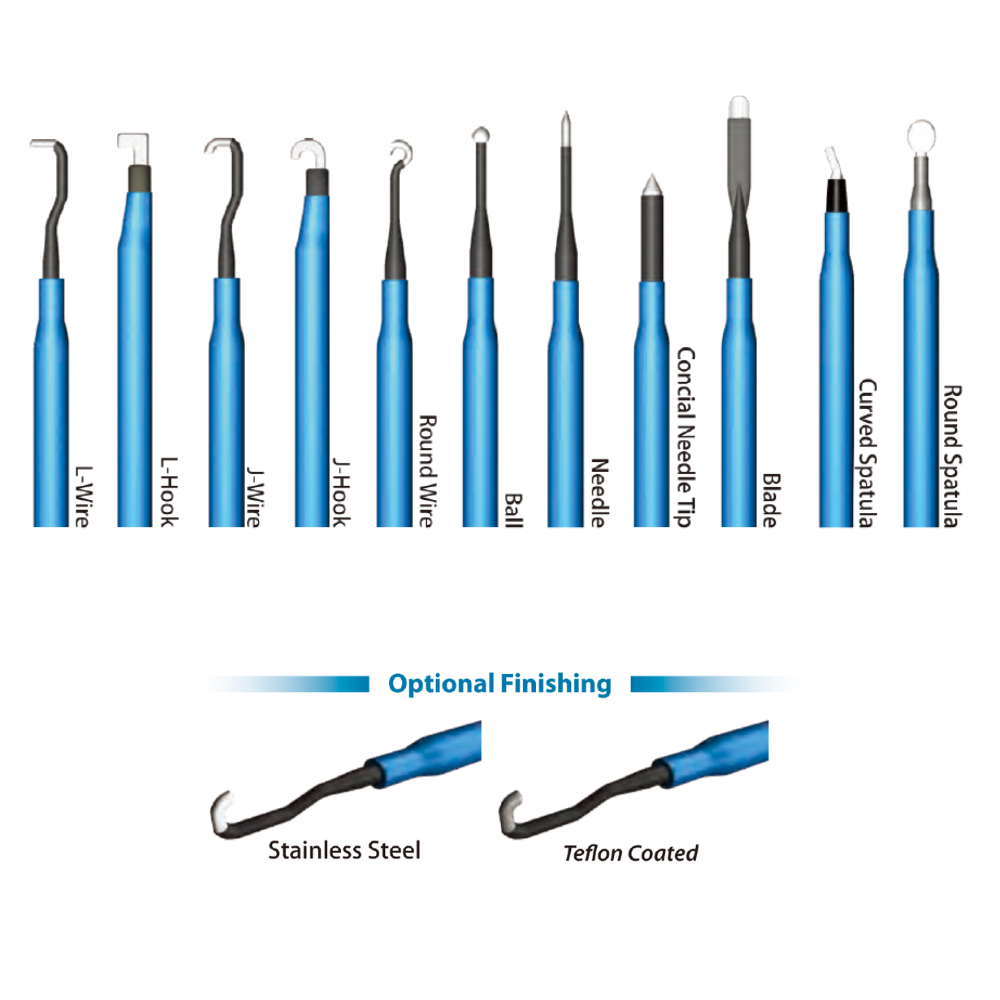

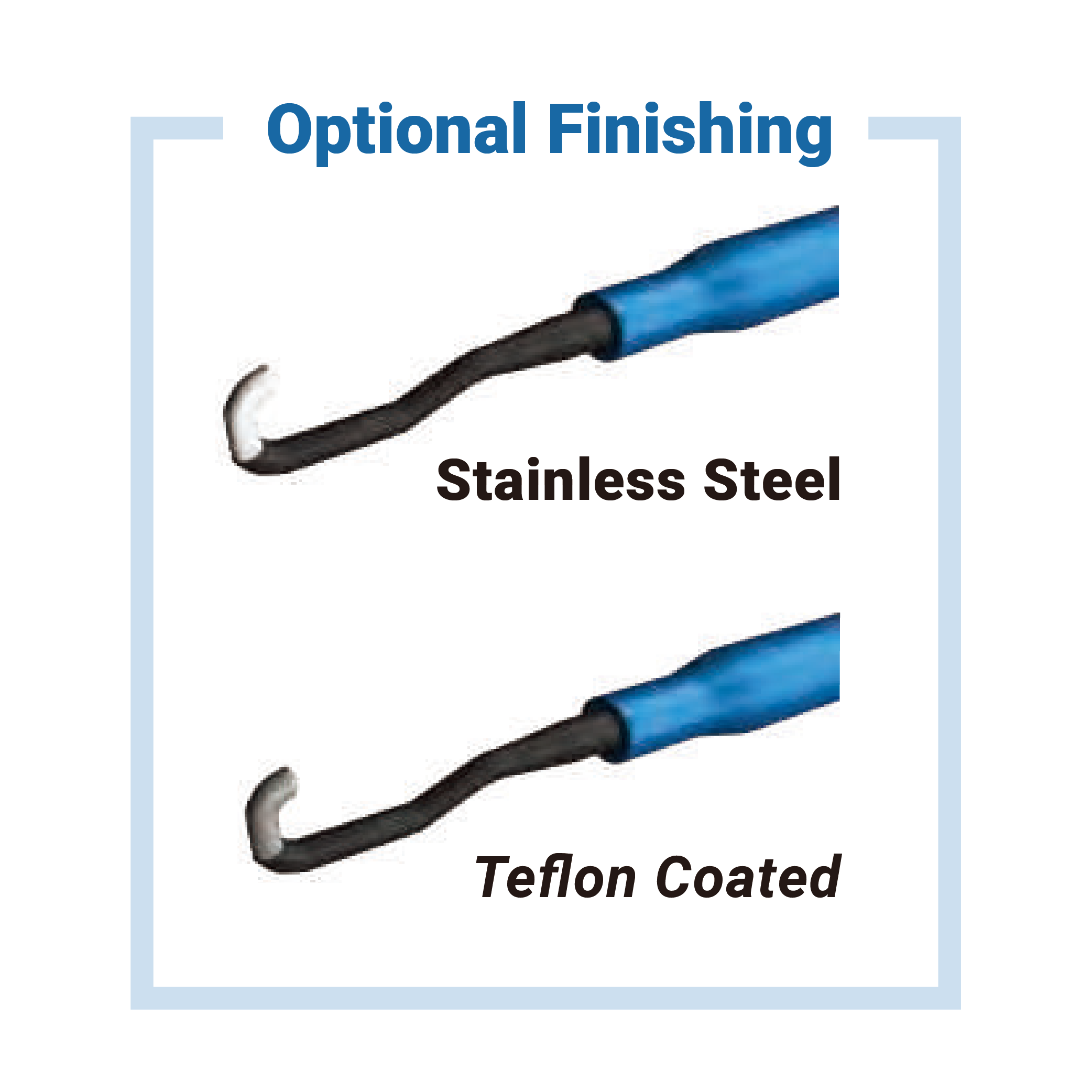

- Optional Teflon coating for reduced tissue adhesion
- Compatible with standard monopolar electrosurgery pencils
- Sterile Packaging, 6 pcs/box
| Product No | Shaft Diameter | Length | Finishing |
|---|---|---|---|
| LE-JW33S2 | Ø2.36 mm | 33 cm | Stainless Steel |
| LE-JW33T2 | Ø2.36 mm | 33 cm | Teflon Coated |
| LE-JW33S4 | Ø4.00 mm | 33 cm | Stainless Steel |
| LE-JW33T4 | Ø4.00 mm | 33 cm | Teflon Coated |
| LE-JW45S2 | Ø2.36 mm | 45 cm | Stainless Steel |
| LE-JW45T2 | Ø2.36 mm | 45 cm | Teflon Coated |
| LE-JW45S4 | Ø4.00 mm | 45 cm | Stainless Steel |
| LE-JW45T4 | Ø4.00 mm | 45 cm | Teflon Coated |
